John Deere約翰迪爾強鹿6068發動機機油冷卻器零件圖冊
詳細描述
機油冷卻器

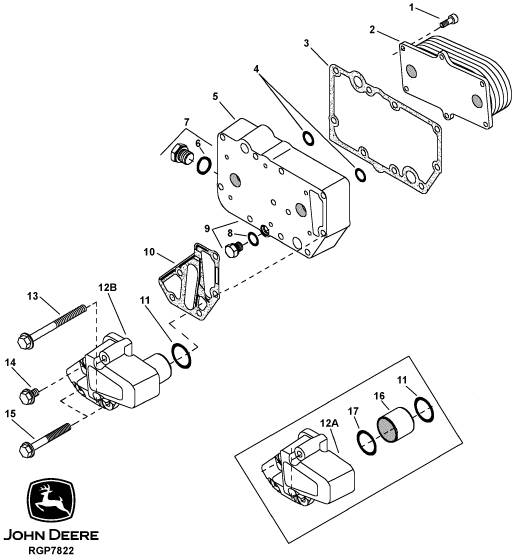

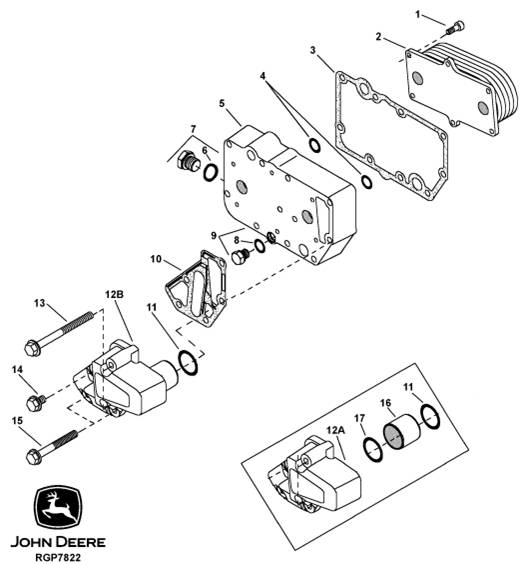

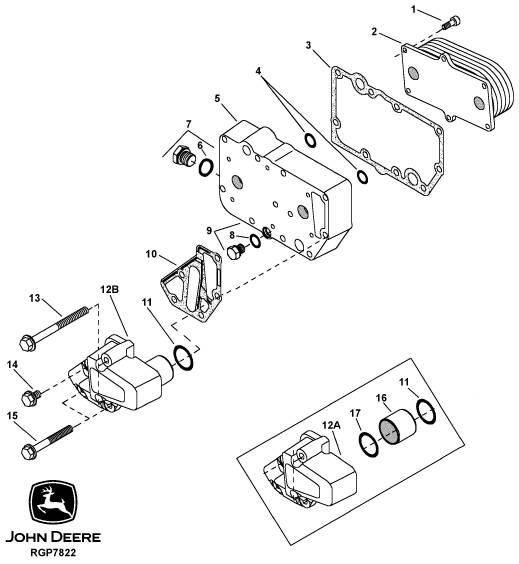

John Deere約翰迪爾強鹿6068 6.8L柴油發動機機油冷卻器零件圖冊
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS
1 RE67231 SCREW 6 X X M6 X 16
2 RE59296 OIL COOLER 1 X X
3 R123501 GASKET 1 X X
4 T122075 O-RING 2 X X
5 R123471 HOUSING 1 X X
6 51M7043 O-RING 1 X X 15.300 X 2.200 MM
7 RE46685 PLUG 1 X X
8 51M7040 O-RING 1 X X 9.300 X 2.200 MM
9 RE46686 PLUG 1 X X
10 R501428 GASKET 1 X X (SUB FOR R123502)
11 R504734 O-RING 1 X X
12A R135177 ADAPTER 1 -873082 X X (SUB FOR R123472) (SUB R502811)
(DUBUQUE TO)
R135177 ADAPTER 1 -624597 X (SARAN CD)
12B R502811 ADAPTER 1 873083- X X (DUBUQUE T0)
R502811 ADAPTER 1 624598- X (SARAN CD)
R502811 ADAPTER 1 X (TORREON PE)
13 19M7970 SCREW 2 X X M8 X 100
14 RE67238 SCREW 1 X X M8 X 20
15 19M7802 SCREW 2 X X M8 X 65
16 R115252 TUBE 1 -873082 X X (DUBUQUE T0)
R115252 TUBE 1 -624597 X (SARAN CD)
17 R61105 O-RING 1 -873082 X X (DUBUQUE T0)
R61105 O-RING 1 -624597 X (SARAN CD)
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 RE67231 SCREW 6 X X X M6 X 16
2 RE56690 OIL COOLER 1 X X X
3 R123501 GASKET 1 X X X
4 T122075 O-RING 2 X X X
5 R123471 HOUSING 1 X X X
6 51M7043 O-RING 1 X X X 15.300 X 2.200 MM
7 RE46685 PLUG 1 X X X
8 51M7040 O-RING 1 X X X 9.300 X 2.200 MM
9 RE46686 PLUG 1 X X X
10 R501428 GASKET 1 X X X (SUB FOR R123502)
11 R504734 O-RING 1 X X X
12A R135177 ADAPTER 1 -873082 X X X (SUB FOR R123472) (SUB R502811)
(DUBUQUE TO)
R135177 ADAPTER 1 -624597 X X X (SARAN CD)
12B R502811 ADAPTER 1 873083- X X X (DUBUQUE T0)
R502811 ADAPTER 1 624598- X X X (SARAN CD)
R502811 ADAPTER 1 X X X (TORREON PE)
13 19M7970 SCREW 2 X X X M8 X 100
14 RE67238 SCREW 1 X X X M8 X 20
15 19M7802 SCREW 2 X X X M8 X 65
16 R115252 TUBE 1 -873082 X X X (DUBUQUE T0)
R115252 TUBE 1 -624597 X X X (SARAN CD)
17 R61105 O-RING 1 -873082 X X X (DUBUQUE T0)
R61105 O-RING 1 -624597 X X X (SARAN CD
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 RE67231 SCREW 6 X X X M6 X 16
2 RE56690 OIL COOLER 1 X X X
3 R123501 GASKET 1 X X X
4 T122075 O-RING 2 X X X
5 R123471 HOUSING 1 X X X
6 51M7043 O-RING 1 X X X 15.300 X 2.200 MM
7 RE46685 PLUG 1 X X X
8 51M7040 O-RING 1 X X X 9.300 X 2.200 MM
9 RE46686 PLUG 1 X X X
10 R501428 GASKET 1 X X X (SUB FOR R123502)
11 R504734 O-RING 1 X X X
12A R135177 ADAPTER 1 -873082 X X X (SUB FOR R123472) (SUB R502811)
(DUBUQUE TO)
R135177 ADAPTER 1 -624597 X X X (SARAN CD)
12B R502811 ADAPTER 1 873083- X X X (DUBUQUE T0)
R502811 ADAPTER 1 624598- X X X (SARAN CD)
R502811 ADAPTER 1 X X X (TORREON PE)
13 19M7970 SCREW 2 X X X M8 X 100
14 RE67238 SCREW 1 X X X M8 X 20
15 19M7802 SCREW 2 X X X M8 X 65
16 R115252 TUBE 1 -873082 X X X (DUBUQUE T0)
R115252 TUBE 1 -624597 X X X (SARAN CD)
17 R61105 O-RING 1 -873082 X X X (DUBUQUE T0)
R61105 O-RING 1 -624597 X X X (SARAN CD)
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS
1 RE67231 SCREW 6 X M6 X 16
2 RE56690 OIL COOLER 1 X
3 R123501 GASKET 1 X
4 T122075 O-RING 2 X
5 R123471 HOUSING 1 X
6 51M7043 O-RING 1 X 15.300 X 2.200 MM
7 RE46685 PLUG 1 X
8 51M7040 O-RING 1 X 9.300 X 2.200 MM
9 RE46686 PLUG 1 X
10 R501428 GASKET 1 X (SUB FOR R123502)
11 R504734 O-RING 1 X
12A R135177 ADAPTER 1 -873082 X (SUB FOR R123472) (SUB R502811)
(DUBUQUE TO)
R135177 ADAPTER 1 -624597 X (SARAN CD)
12B R502811 ADAPTER 1 873083- X (DUBUQUE T0)
R502811 ADAPTER 1 624598- X (SARAN CD)
R502811 ADAPTER 1 X (TORREON PE)
13 19M7970 SCREW 2 X M8 X 100
14 RE67238 SCREW 1 X M8 X 20
15 19M7802 SCREW 2 X M8 X 65
16 R115252 TUBE 1 -873082 X (DUBUQUE T0)
R115252 TUBE 1 -624597 X (SARAN CD)
17 R61105 O-RING 1 -873082 X (DUBUQUE T0)
R61105 O-RING 1 -624597 X (SARAN CD
